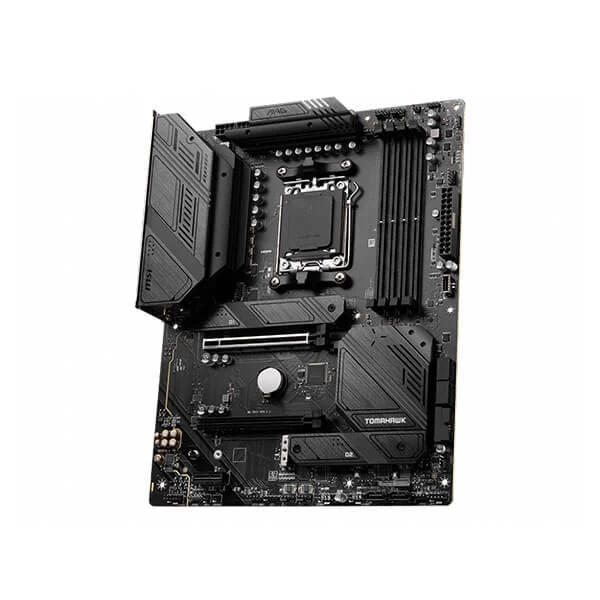

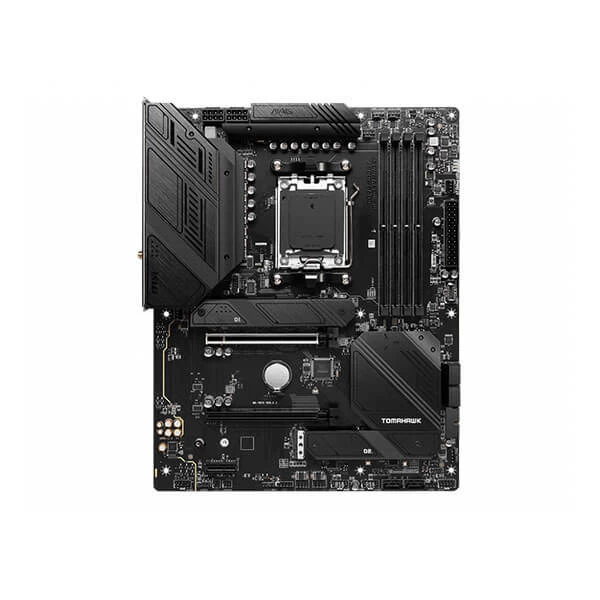

MSI MAG B650 Tomahawk WIFI Motherboard

Features

MAG B650 TOMAHAWK WIFI

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, up to 6400+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

New launching

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹23,390.00

Compare

Add to wishlist

13 People watching this product now!

Courier delivery

Our courier will deliver to the specified address

7-10 Days

Free 30-Day returns

Payment Methods:

Description

Specification

Chipset	AMD B650
CPU SUPPORT	Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Onboard Graphics	1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR maximum resolution of 4K 60Hz Support DP 1.4 maximum resolution of 8K 60Hz
EXPANSION SLOT	2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Audio	Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	ATX 243.84mmx304.8mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
