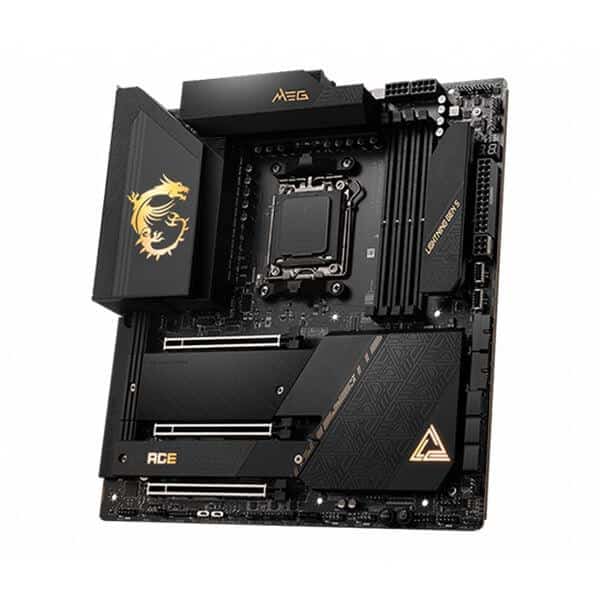

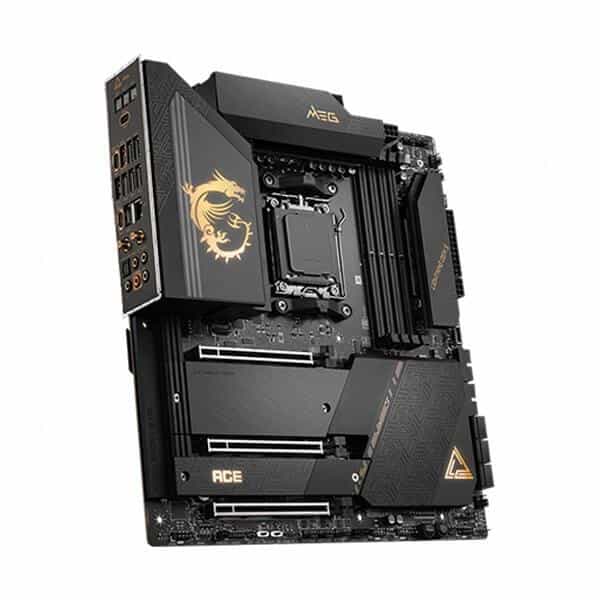

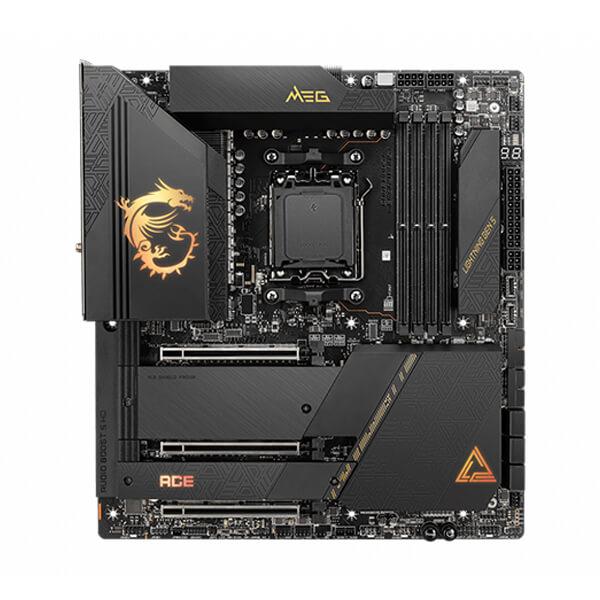

MSI MEG X670E ACE WIFI
MSI MEG X670E ACE WIFI - Image 2
MSI MEG X670E ACE WIFI - Image 3
MSI MEG X670E ACE WIFI - Image 4
MSI MEG X670E ACE WIFI - Image 5

MSI MEG X670E ACE WIFI

Brand:MSI
SKU: MEG-X670E-ACE
Chipset X670E
Form Factor ATX
Memory Type DDR5
Socket
Brand

New launching

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹75,690.00

Compare
Add to wishlist
10 People watching this product now!
  • Courier delivery

Our courier will deliver to the specified address

7-10 Days

  • Free 30-Day returns

Payment Methods:

Description

Description

Features:

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
  • Extreme Power Design: 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
  • Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Outstanding Cooling Solution: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
  • 10G Super LAN with latest Wi-Fi 6E solution: Onboard 10Gbps LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery. DIY Friendly Design: Patent Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
  • 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

Specifications:

CHIPSET AMD X670
CPU SUPPORT
  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6666,6600, 6400, 6200, 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800(JEDEC) MHz

  • 1DPC 1R Max speed up to 6666+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO
ONBOARD GRAPHICS 1x Type-C DisplayPort
EXPANSION SLOT
  • 3x PCI-E x16 slot
  • Supports x16/x0/x4, x8/x8/x4
  • PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
  • PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
MULTI-GPU Supports AMD MULTI-GPU
STORAGE
  • 4x M.2 slot
  • M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
  • M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
  • 6x SATA 6G port
RAID
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
  •  SATA_A1~A2 do not support RAID function.
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Front)
  • 8x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 2x USB 3.2 Gen2x2 Type C (Rear)
  • 1x USB 3.2 Gen2x2 Type C (Front)
LAN Marvell® AQC113-B1-C 10Gbps LAN
WIRELESS / BLUETOOTH
  • AMD Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHzbands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax Supports
  • Bluetooth® 5.2
AUDIO
  • Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Front Type-C Quick Charge Connector(PD_PWR1)
  • 1x CPU Fan
  • 2x Pump Fan
  • 5x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Water Flow connector
  • 1x Slow Mode Booting Jumper(JSLOW)
  • 1x Front Audio (JAUD)
  • 2x Thermal Sensorconnectors(T_SEN)
  • 1x Tuning Controllerconnector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 4x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen2 Type C
  • 1x USB 3.2 Gen 2×2 Type-C
  • 1x USB 3.2 Gen 2×2 Type C
  • V-check point
LED FEATURE
  • 1x EZ LED Control switch
  • 4x EZ Debug LED
  • 1x 2-Digit Debug Code LED

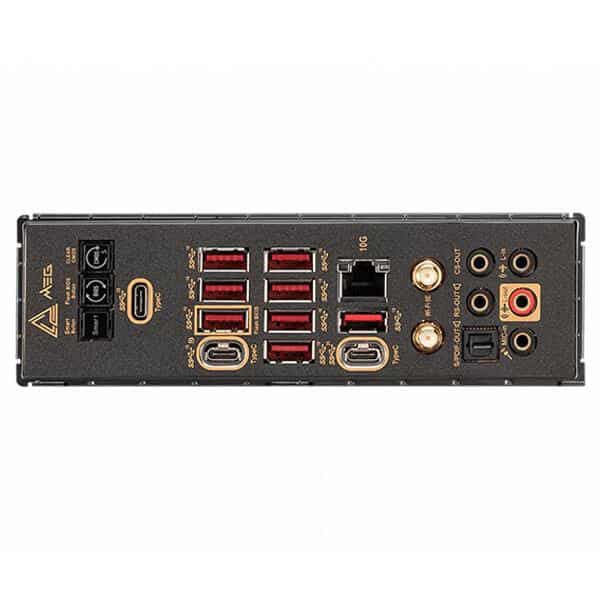

BACK PANEL PORTS
  • Clear CMOS Button
  • Flash BIOS Button
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • 10G Super LAN
  • Wi-Fi / Bluetooth
  • HD Audio Connectors
  • Smart Button
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
  • USB 3.2 Gen 2 10Gbps (Type-C Display port)
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
  • Optical S/PDIF-Out
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION E-ATX 277mmx304.8mm
Warranty 3 Years
