MSI MPG Z890 EDGE TI WIFI

Brand	MSI
Socket	LGA 1851
Chipset	Z890
Memory Type	DDR5
Form Factor	ATX

New launching

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₹44,990.00

Compare

Add to wishlist

10 People watching this product now!

Courier delivery

Our courier will deliver to the specified address

7-10 Days

Free 30-Day returns

Payment Methods:

Description

MPG Z890 Edge TI WiFi motherboard, featuring an LGA 1851 socket and supports Intel Core Ultra Processor. This motherboard has 4x DDR5 memory slots and PCIe 5.0, Gen 5 M.2 slot for lightning fast game experience.

Features:

MPG Z890 EDGE TI WIFI

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, up to 9200+ MT/s (OC)
Ultra Performance: 16+1+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
Ultra Connect: Thunderbolt 4 and Intel® Killer 5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification:

Model	MPG-Z890-EDGE-TI-WIFI
Chipset	INTEL Z890
CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 9200+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 4800+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM The DIMM slots on this motherboard have single-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information,
Onboard Graphics	1x HDMI Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, , supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
Audio	Realtek ALC1220P Codec 7.1-Channel USB High Definition Audio Supports S/PDIF output
Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Onboard Thunderbolt	2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB	1x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN	1x Intel Killer E5000B 5G LAN
Internal IO	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED

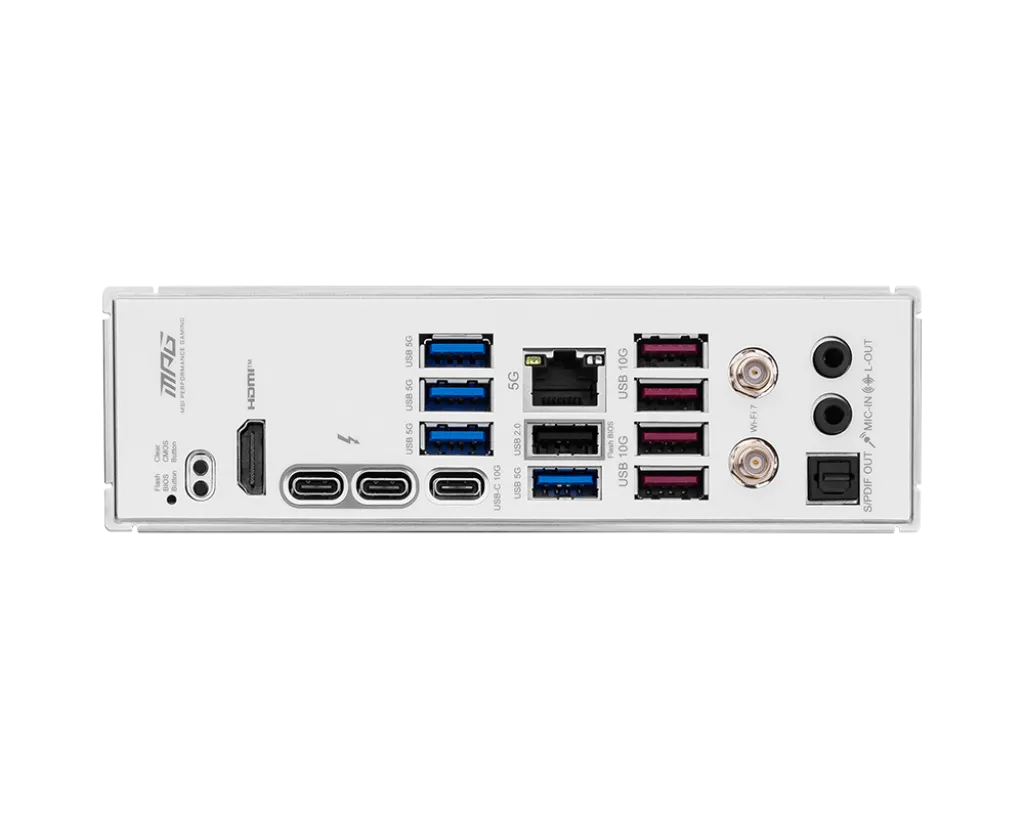

BACK PANEL PORTS	USB 5Gbps Type-A 5G LAN USB 10Gbps Type-A Wi-Fi / Bluetooth Audio ConnectorS Clear CMOS Button Flash BIOS Button HDMI Thunderbolt 4 USB 10Gbps Type-C USB 2.0 Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows 11 64-bit
BOX CONTENT	Quicl installation Guide Europeon Union Regularly Notice Shout-Out Flyer 2x Sata Cables EZ M.2 Clips II EZ M.2 Clips Remover USB Driver Gable Sticker EZ Wi-Fi Antenna 1to3 EZ Conn-Cable (V2) EZ Front Panel Cable
PCB Info	ATX 243.84mmx304.8mm
Warranty	3 Years
